    Heavy Metal Testing of Flavor Extracts: ICP-MS Standards, Limits, and Supplier QA for Vape Brands

    Author: R&D Team, CUIGUAI Flavoring Published by: Guangdong Unique Flavor Co., Ltd. Last Updated: Sep 22, 2026 WhatsApp & Telegram: +86 189 2926 7983 Email: info@cuiguai.com Heavy metal testing of flavor extracts is the quantitative determination of toxic elemental impurities — primarily lead (Pb), arsenic (As), cadmium (Cd), and mercury (Hg) — in the concentrated flavoring materials used to produce e-liquids. For e-liquid brand owners, importers, and QA managers sourcing flavor concentrates from a B2B manufacturer, ICP-MS (inductively coupled plasma mass spectrometry) has become the reference analytical method for this work, and the acceptance benchmarks most often applied are derived from USP General Chapters <232> and <233> and the ICH Q3D guideline on elemental impurities. This guide explains where heavy metals come from in flavor extracts, which standards define defensible limits, how an ICP-MS test actually works, and the specific questions you should put to every concentrate supplier before you commit to a purchase order or a master supply agreement. ICP-MS instrument in a modern flavor QC laboratory.

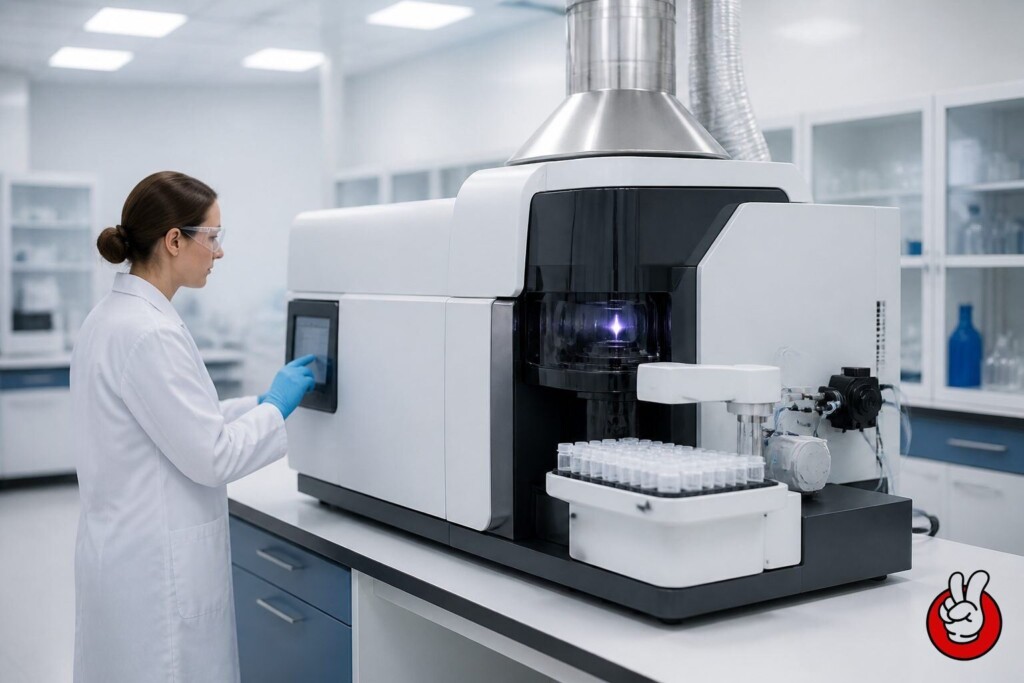

    How ICP-MS heavy metal testing protects e-liquid brands: USP <232>/<233> and ICH Q3D standards, target metals, and what to demand on your flavor concentrate CoA.

    ICP-MS Heavy Metal Testing | USP <232> Standards for Flavor Extracts

    Why Heavy Metals Appear in Flavor Extracts

    A flavor concentrate is rarely a single molecule. It is a formulated mixture of aroma chemicals, carrier solvents, emulsifiers, and often botanical extracts — tea infusions, fruit essences, tobacco absolutes, herb distillates. Every one of those inputs can carry trace metals, and because concentrates are dosed into e-liquid at 5–15% or higher, even a low contamination level in the concentrate becomes proportionally visible in the finished product. Three entry routes dominate.

    Botanical raw materials: metals travel from soil to leaf to extract

    Plants are passive accumulators of soil-borne elements. Lead and cadmium, in particular, partition readily into leaf tissue, and crops grown near industrial zones, old orchards, or roadsides routinely show elevated levels. Tea leaves, tobacco leaf, fruit peels, and herbs are all documented sources of measurable cadmium and lead in botanical materials. When those botanicals are solvent-extracted and concentrated into a flavor base, metals that were present at trace level in the plant can concentrate alongside the aroma compounds — which is why plant-derived flavor lines deserve elemental screening even when the aroma chemistry is pristine.

    Process water, equipment contact, and cross-contamination

    Stainless steel vessels and piping, soldered joints, brass fittings, and even certain filter media can leach nickel, chromium, and lead into a batch, particularly under acidic conditions or prolonged contact. Process water that has not been deionized adds its own load of dissolved metals. Shared production lines create a third route: a line that runs a botanical extract in the morning and a neutral flavor base in the afternoon can carry residual metal into the next product. Good manufacturing practice keeps these routes controlled, but control must be demonstrated, not assumed.

    Synthetic aroma chemicals and carriers

    Even fully synthetic flavor ingredients are not automatically metal-free. Catalysts used in esterification, reagent-grade salts, and certain colorants and carriers can contain elemental residues. Reputable suppliers of food- or vape-grade aroma chemicals hold their own trace-metal specifications, but “trace” is not “zero” — the question is always how low, measured how, and verified on which batch.

    The Standards That Define “Safe”: USP <232>, USP <233>, and ICH Q3D

    The pharmaceutical industry faced the same elemental-impurity problem decades ago and solved it with a modern, risk-based framework. Until 2018, the United States Pharmacopeia relied on the older <231> Heavy Metals test — a semi-quantitative colorimetric method that could not reliably detect several toxic elements at relevant levels. That test was officially deleted and replaced, effective January 1, 2018, by two modern general chapters: <232> Elemental Impurities — Limits, and <233> Elemental Impurities — Procedures. The same values are mirrored in ICH Q3D (current revision Q3D(R2)), which harmonizes elemental impurity control across the US, EU, and Japan.

    USP <232>: permitted daily exposure (PDE) limits for 24 elements

    USP <232> establishes Permitted Daily Exposure (PDE) limits for 24 elemental impurities — the maximum amount of each element a person can be exposed to per day without unacceptable risk. Elements are grouped by toxicity: Class 1 contains the four highest-risk elements — arsenic, cadmium, lead, and mercury — which are limited at single-digit microgram-per-day levels. Class 2A (cobalt, nickel, vanadium) and Class 2B (silver, thallium, palladium, platinum, and others) are controlled at higher but still strict PDEs, while Class 3 elements (barium, chromium, copper, tin, and others) carry the most lenient limits. The PDE approach is dose-based, which makes it portable: the same PDE can be converted into a concentration limit for a pharmaceutical tablet, a food ingredient, or an e-liquid concentrate simply by dividing by the daily intake of the product.

    USP <233>: procedures that make ICP-MS the method of choice

    USP <233> specifies how the testing must be performed. For organic matrices such as flavor concentrates, it prescribes closed-vessel microwave digestion to destroy the organic matrix and bring all elements into solution without losing volatile analytes. It then names two instrumental procedures: Procedure 1 using ICP-OES (optical emission spectrometry) and Procedure 2 using ICP-MS. ICP-MS is the preferred technique when the target metals must be measured at sub-ppm levels with multi-element coverage in a single run — exactly the situation facing a flavor laboratory.

    What these standards mean for a flavor house and your supply chain

    Although <232> and <233> were written for drug products, they are the most rigorous publicly available benchmarks for elemental purity of flavoring ingredients. A concentrate manufacturer that routinely benchmarks its certificates of analysis against ICH Q3D oral PDEs is operating at a defensible standard of care — and a brand that writes those benchmarks into its supplier specification gains audit-ready documentation. For a structured way to fold metals screening into your overall ingredient risk process, see our practical risk assessment model for vape flavorings. Closed-vessel microwave digestion and autosampler preparation for elemental analysis.
    Why closed-vessel microwave digestion is the mandatory first step for ICP-MS analysis of flavor concentrates — and how it protects mercury and arsenic results.

    Microwave Digestion for ICP-MS | Flavor Extract Metal Sample Prep

    Why Heavy Metals Matter Specifically for Vaping Products

    Inhalation changes the toxicology conversation. The human lung absorbs metals far more efficiently than the gut, and inhaled metals bypass the first-pass metabolism that limits oral exposure. A lead or cadmium burden that would be unremarkable in a food ingredient is a different proposition when the same metals are aerosolized and inhaled on a daily basis — which is why e-liquid manufacturers, importers, and regulators all look at metal content more strictly than the food industry does.

    What the published research actually shows

    A landmark 2018 study by researchers at the Johns Hopkins Bloomberg School of Public Health, published in Environmental Health Perspectives, analyzed e-liquids and aerosols from 56 regular vapers. The team found that a significant number of devices generated aerosols with potentially unsafe levels of lead, chromium, manganese, and/or nickel. Median lead concentrations in aerosol were roughly 15 µg/kg — more than 25 times the median in refill liquids — and almost half of all aerosol samples exceeded EPA health-based limits for lead. Notably, the study also detected arsenic in the refill e-liquids, tank liquids, and aerosols of a subset of users, with no clear coil origin, leaving the e-liquid or flavor ingredients as a plausible contributor.

    The flavor concentrate is part of the metal budget

    The total metal burden of an inhaled aerosol is a sum: device coils and wicks, the e-liquid base, nicotine, and the flavor concentrate all contribute. You cannot control the device, but you can control what goes into your bottle. A concentrate that carries measurable lead or cadmium adds directly to the exposure budget you are ultimately responsible for as the brand. In China, the mandatory national standard GB 41700-2022 for electronic cigarettes now sets binding product-level requirements for atomizing liquids — our GB 41700-2022 compliance guide walks through what that standard changes for additive and constituent control. In the EU, the Tobacco Products Directive requires complete ingredient disclosures and toxicological data for notified e-liquids, and in the US, PMTA submissions demand constituent characterization. Trace metals sit squarely inside all three frameworks. Analyst reviewing multi-element ICP-MS data against acceptance limits.
    What defensible ICP-MS results look like: calibration, internal standards, spike recovery, and why LOQ disclosure is non-negotiable on a flavor CoA.

    ICP-MS Method Validation | Multi-Element Data Review for Flavor QC

    How an ICP-MS Test Is Actually Performed on a Flavor Extract

    A reliable metal result is built in four stages. Understanding them lets you interrogate a supplier's certificate of analysis with real authority.

    Stage 1 — Closed-vessel microwave digestion

    Flavor concentrates are organic liquids and cannot be aspirated into the instrument directly. The sample is weighed into a sealed PTFE digestion vessel with high-purity nitric acid (and, where needed, hydrochloric acid and hydrogen peroxide), then heated under pressure in a microwave system to around 180–200 °C. The sealed vessel destroys the organic matrix while keeping volatile elements — especially mercury and, to a lesser degree, arsenic — locked in solution. Method blanks and matrix spikes are digested alongside the samples in the same run, which is the only way to prove that the digestion itself neither lost nor added metal.

    Stage 2 — Calibration, internal standards, and QC

    The instrument is calibrated with multi-element standards bracketing the expected range, and internal standards (typically elements such as indium, rhodium, germanium, or lutetium, added identically to every blank, standard, and sample) correct for drift and matrix effects. Certified reference materials — botanical or food-matrix CRMs with certified metal values — are analyzed in the same batch to demonstrate accuracy, alongside duplicate digestions and spike recoveries. A lab that cannot show you its CRM and spike data is not giving you a measurement; it is giving you an opinion.

    Stage 3 — Measurement in the argon plasma and mass spectrometer

    The digested solution is nebulized into an argon plasma sustained at several thousand kelvin, where the sample is vaporized, atomized, and ionized. Ions are extracted into the mass spectrometer and filtered by their mass-to-charge ratio, letting the instrument count atoms of lead, arsenic, cadmium, and mercury individually, even in the presence of a heavy organic-free matrix. A collision or reaction cell (typically using helium in kinetic energy discrimination mode) removes polyatomic interferences — for example, argon chloride ions that would otherwise masquerade as arsenic, and molybdenum oxide that interferes with cadmium. The result is multi-element quantitation at parts-per-billion and even parts-per-trillion levels in a single five-minute acquisition.

    Stage 4 — Reporting with honest limits of quantification

    Results are reported in mg/kg (ppm) or µg/kg (ppb) of concentrate. The figure that matters as much as the result itself is the limit of quantification (LOQ) — the lowest concentration the method can measure reliably. A certificate that states “not detected” without disclosing the LOQ is meaningless: if the LOQ sits above your acceptance limit, the certificate cannot prove compliance. Always ask for the LOQ for each element on each batch. QC release of a golden flavor concentrate after elemental screening.
    A practical supplier QA checklist: what to verify on every flavor concentrate CoA — elements, method, LOQ, and batch-to-batch consistency.

    Flavor Concentrate CoA | Heavy Metal Acceptance Limits for E-Liquid

    Building a Metal QA Specification for Your Concentrate Supplier

    You do not need to operate an ICP-MS lab to demand rigorous data — you need to know what rigorous looks like and write it into your contract. Five requirements cover most of the risk. First, every batch CoA must list each target element individually, with the analytical method (ICP-MS), the LOQ, and the result — not a blanket “passes” line. Second, compare the last five to ten CoAs to verify batch-to-batch stability; metals that jump between batches signal a process or raw-material change you were not told about. Third, require the supplier to screen its own botanical raw materials before extraction, so problems are caught upstream. Fourth, agree acceptance limits up front — benchmarked to ICH Q3D oral PDEs converted to concentrate concentration, or to your own internal limits — and put them in the specification. Fifth, verify the testing laboratory itself: an ISO/IEC 17025-accredited lab with the method in scope is worth far more than an in-house “we checked it” statement. At CUIGUAI Flavor, every plant-derived line — from tea flavor concentrate to tobacco flavor concentrate — is manufactured with elemental screening as part of the batch release program, and our technical team will share element-by-element data during qualification. For importers, the same discipline applies at the receiving dock: request the batch certificate of analysis together with the shipping documents, spot-check a random batch through an independent accredited laboratory at least once a year, and keep a metals dossier for every SKU you bring to market. That dossier becomes the backbone of your own customer-facing quality claims and of any regulatory submission, from EU TPD ingredient notifications to FDA PMTA constituent characterization. It also gives you the evidence you need if a downstream dispute ever arises about who contributed what to a finished e-liquid.

    What a certificate of analysis should state

    A usable metal CoA states each element individually, the analytical method (ICP-MS, with the digestion procedure referenced), the limit of quantification for that element in that matrix, the result, and the acceptance limit the batch was judged against. It should also carry the batch number, the analysis date, the analyst identity, and the signature or stamp of the quality unit. If any of those fields is missing or vague, the certificate cannot be audited — and an unauditable certificate is worth no more than a verbal assurance.

    Common Pitfalls in Heavy Metal Testing

    • Relying on the obsolete USP <231> colorimetric heavy metals test, which cannot resolve individual elements or reach modern limits.
    • Accepting “metals not detected” without a disclosed LOQ — the result is only meaningful if the LOQ is below the acceptance limit.
    • Testing only the finished e-liquid and skipping the concentrate. Dilution can push a borderline concentrate below your finished-product threshold, hiding a problem until it recurs batch after batch.
    • Omitting mercury and arsenic from the panel. Both need special digestion and interference handling; a panel that checks only lead and cadmium is incomplete.
    • Comparing ICP-OES and ICP-MS numbers interchangeably without checking that both methods' LOQs are below the same limit.

    Frequently Asked Questions

    What is ICP-MS used for in flavor testing? ICP-MS is used to measure trace and ultra-trace concentrations of toxic elemental impurities — chiefly lead, arsenic, cadmium, and mercury — in flavor concentrates and e-liquids, at parts-per-billion sensitivity, with all target elements quantified in a single analysis. Which heavy metals are tested in flavor extracts? The standard panel covers the USP <232> / ICH Q3D Class 1 elements: arsenic, cadmium, lead, and mercury. Extended panels add nickel, chromium, cobalt, vanadium, copper, and other elements relevant to botanical sources and processing equipment. What are the legal limits for heavy metals in e-liquid flavorings? There is no single universal limit. Most professional importers and manufacturers benchmark concentrate specifications against ICH Q3D / USP <232> permitted daily exposures converted to concentration, while product-level obligations exist under frameworks such as China's GB 41700-2022, the EU TPD, and US FDA PMTA constituent characterization. Can heavy metals be removed from a flavor concentrate? In principle, filtration and chelation can reduce certain metals, but treatment usually damages the flavor profile and hides the root cause. The robust strategy is prevention: certified botanical sourcing, controlled process water and equipment, and routine ICP-MS screening at the source. How often should a concentrate be retested? At minimum on every production batch if botanicals are involved, and after any change in raw-material supplier, process, or equipment. Quarterly surveillance testing is a reasonable floor for stable synthetic-only lines.

    Talk to Our Technical Team

    Heavy metal data, method sheets, and element-by-element certificates are part of every CUIGUAI Flavor qualification pack. If you are launching an e-liquid brand, reformulating an existing line, or auditing a concentrate supplier, our flavor chemists and QA engineers can review your specification against current ICP-MS practice and provide free working samples for your own lab to verify. 📞 Phone: +86 0769 8838 0789 🌐 Website: https://www.cuiguai.com 📧 Email: info@cuiguai.com 💬 WhatsApp & Telegram: +86 189 2926 7983

    References

    United States Pharmacopeia–National Formulary (USP-NF), General Chapters <232> Elemental Impurities — Limits and <233> Elemental Impurities — Procedures. https://www.usp.org ICH Harmonised Guideline Q3D(R2), Elemental Impurities. https://www.fda.gov/media/148474/download Olmedo P. et al., “Metal Concentrations in e-Cigarette Liquid and Aerosol Samples: The Contribution of Metallic Coils,” Environmental Health Perspectives (2018); Johns Hopkins Bloomberg School of Public Health summary. https://publichealth.jhu.edu/2018/study-lead-and-other-toxic-metals-found-in-e-cigarette-vapors Agilent Technologies, “USP <232>/<233> and ICH Q3D Elemental Impurities Analysis — ICP-MS Solutions” (technical whitepaper). https://www.agilent.com/cs/library/whitepaper/public/5991-8149CHCN.pdf
